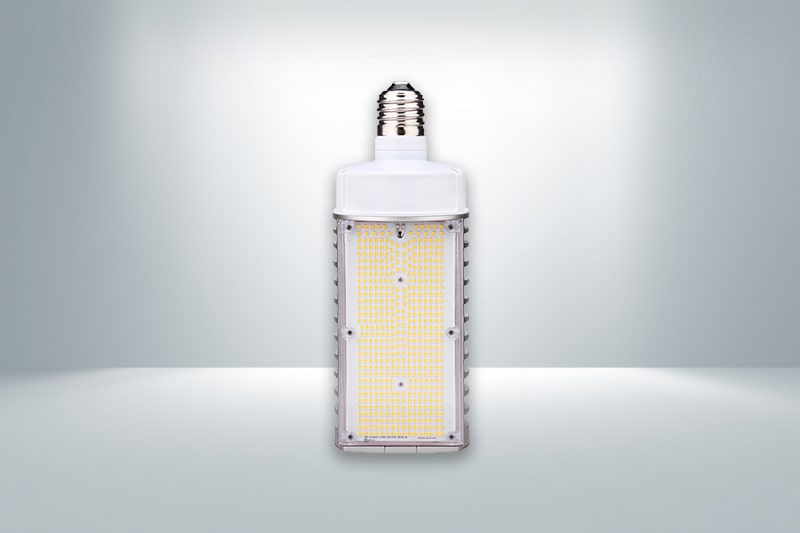

CLH02C
LED Retrofit Lamp
Application Scenarios:
Replacement lights for outdoor lamp posts/arm-type area and road lighting fixtures
Product Asdvantages:
① 90*150 degree.
② UL、CUL、DLC certificate.
③ Long lifespan and good heat dissipation.
④ Internal driver, input voltage AC100-277V.
⑤ Fits many different fixtures to replace traditional lamps.
⑥ Direct replacement for Metal Halide, easy Installation.
⑦ E26/E39/EX39 lamp base. Lamp Base: 270 degree rotated.

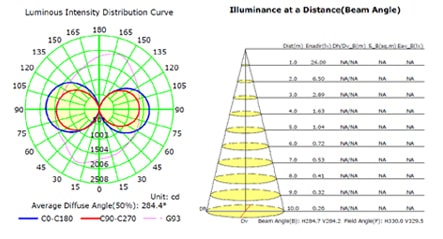

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm)
(5000K)		 CRI Dimension
L*W(inch)		 Weight(kg)
18 120-277 2790 Ra>80 Φ3.07x5.39(E39) 0.48
27 120-277 4050 Ra>80 Φ3.07x5.39(E39) 0.48
36 120-277 5400 Ra>80 Φ3.46x8.50(E39)
Φ3.46x8.62(EX39)		 0.94
45 120-277 6750 Ra>80 Φ3.46x8.50(E39)
Φ3.46x8.62(EX39)		 0.95
54 120-277 8100 Ra>80 Φ3.46x8.50(E39)
Φ3.46x8.62(EX39)		 0.97
75 120-277 11250 Ra>80 Φ4.33x8.74(E39)
Φ4.33x8.86(EX39)		 1.2
95 120-277 14725 Ra>80 Φ4.33x11.5(E39)
Φ4.33x11.61(EX39)		 1.62
110 120-277 16500 Ra>80 Φ4.33x11.5(E39)
Φ4.33x11.61(EX39)		 1.65
