CLW08
LED Corn Light
Application Scenarios:
Supermarkets, Warehouses, Garages, Homes, Offices, Hotels, Hospitals, Schools, Streets, Gardens
Product Asdvantages:
① Meet 4-6KV surge immunity level.
② Can be with clear or frosted cover.
③ Long lifespan and good heat dissipation.
④ IP65 Waterproof Rating. light fin heat sink.
⑤ Sealant pouring for whole driver and lamp plastic housing.

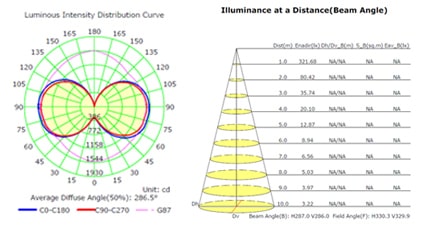

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W E39(inch)		 Weight(kg)
12 100-277 1740-1800 Ra>80 5.43xø2.36 0.22
18 100-277 2610-2700 Ra>80 6.22xø2.36 0.25
27 100-277 3915-4050 Ra>80 7.2xø2.36 0.28
36 100-277 5220-5400 Ra>80 8.3xø3.23 0.56
45 100-277 6525-6750 Ra>80 9.84xø3.23 0.7
54 100-277 7830-8100 Ra>80 9.84xø3.23 0.7
75 100-277 10875-11250 Ra>80 9.84xø5.12 1.48
100 100-277 14500-15000 Ra>80 10.31xø5.12
11.42xø5.12		 1.46
1.56
120 100-277 17400-18000 Ra>80 11.14xø5.12 1.55
