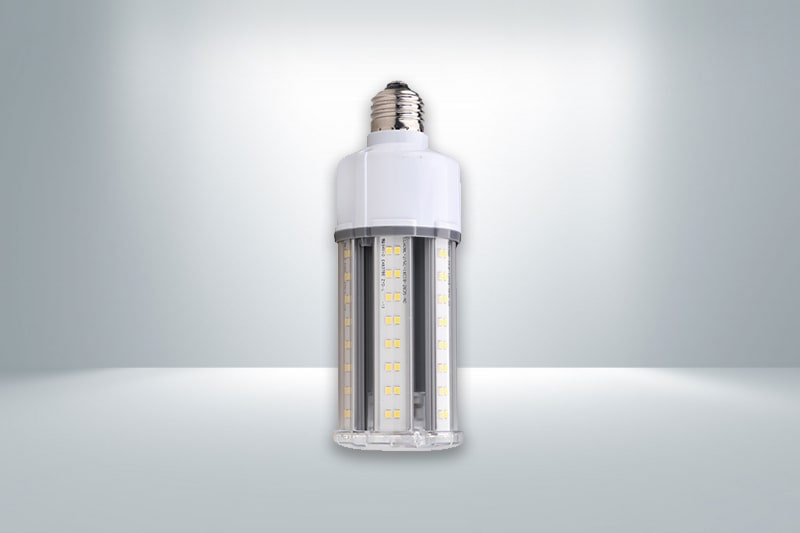

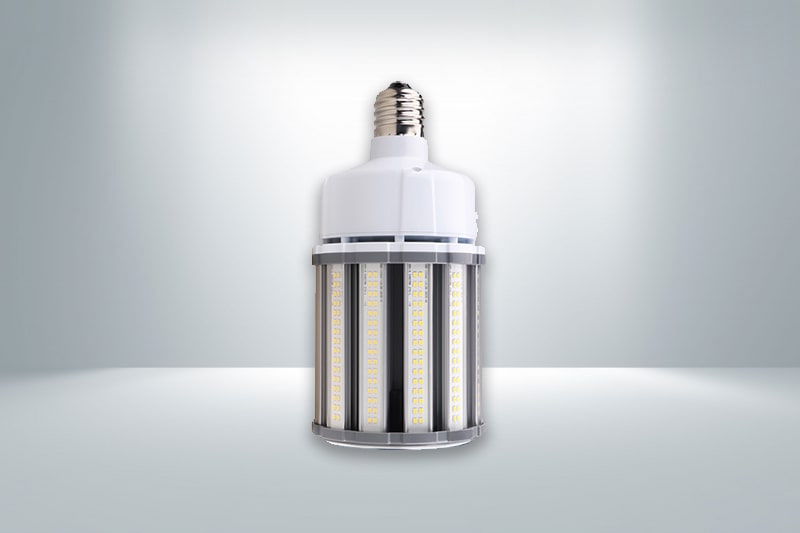

CLW08E
LED Corn Light
Application Scenarios:
Supermarkets, Warehouses, Garages, Homes, Offices, Hotels, Hospitals, Schools, Streets, Gardens
Product Asdvantages:
① 360 degree lighting.
② Meet 4KV surge immunity level.
③ Long lifespan and good heat dissipation.
④ Internal driver, input voltage AC100-277V.
⑤ Continuous resistance with dimming function.
⑥ Fits many different fixtures to replace traditiona.
⑦ Direct replacement for Metal Halide, easy installation.
⑧ Can be with clear or frosted cover. Big heat sink, NO fan.
Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W E39(inch)		 Weight(kg)
3000K 4000K-6500K
27 100-277 3780 4050 Ra>80 7.3xø2.4 0.28
36 100-277 5040 5400 Ra>80 8.3xø3.3 0.56
45 100-277 6300 6750 Ra>80 9.8xø3.3 0.65
54 100-277 7560 8100 Ra>80 9.8xø3.3 0.65
63 100-277 8820 9450 Ra>80 10.1xø3.3 0.7
80 100-277 11200 12000 Ra>80 9.84xø5.1 1.48
100 100-277 14000 15000 Ra>80 10.31xø5.1 1.43
120 100-277 16800 18000 Ra>80 11.14xø5.1 1.55
