EPLF01
Special Lighting - Hazardous Location LED Light
Application Scenarios:
Warehouse, Factory, Workshop Petroleum and petrochemical areas, Gas stations Electricity, Railways, Ports, Public security, Fire control
Product Asdvantages:

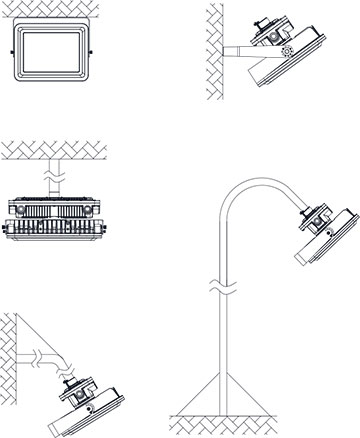

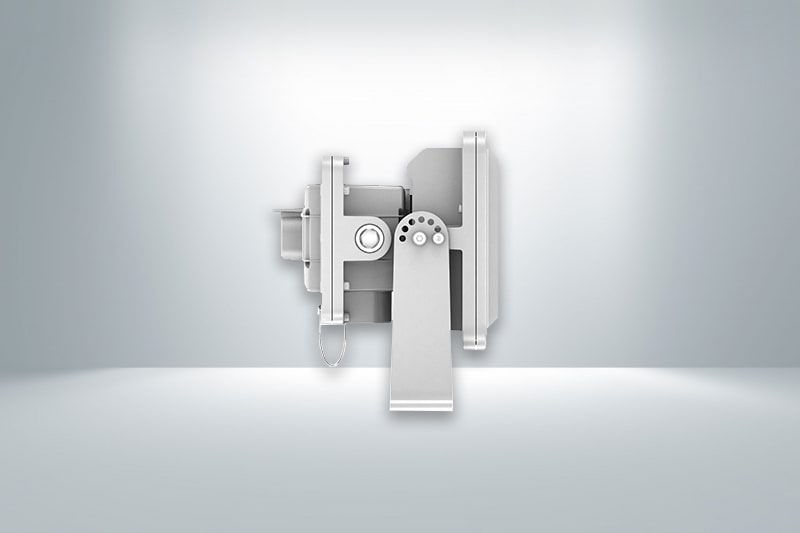

① Mounting brackets optional.

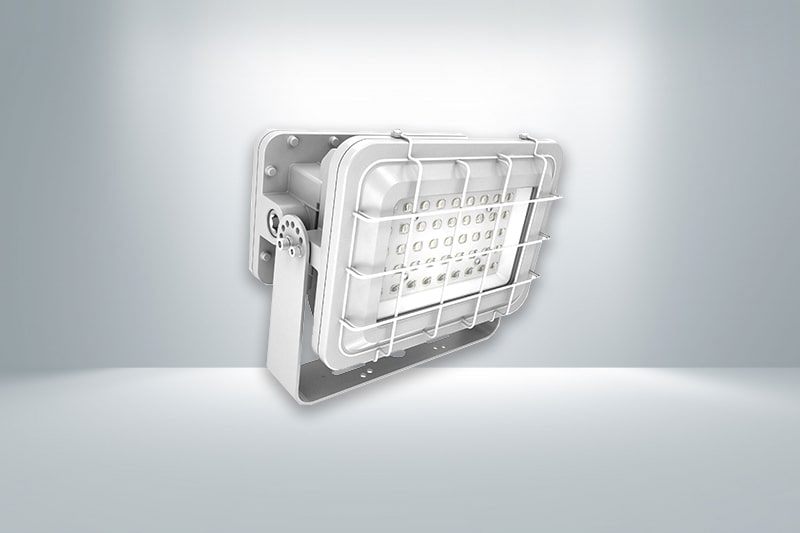

② Wire guard-prevent the glass from being broken.

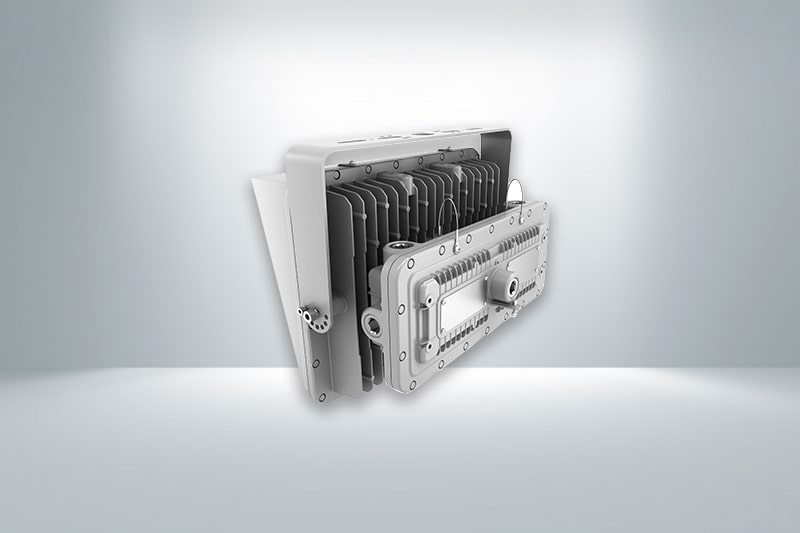

③ Separated lamp body and driver makes higher heat resistance and better heat dissipation.
④ Wiring cavity, helps to isolate the operator and the driver so as to make wiring safer.

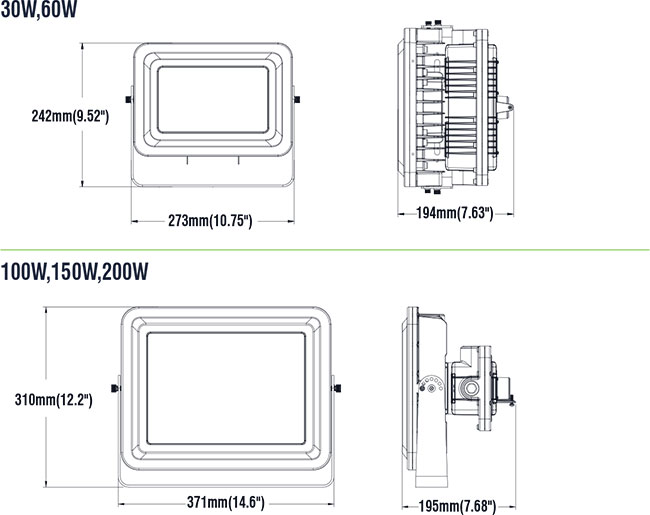

Product Diagram 01
Specifications 02
Input Wattage 30W 60W 100W 150W 200W 150W
Voltage 100-240 / 120-277VAC, 50/60Hz 277-480VAC, 50/60Hz
Lumen Dutput 3600-4500lm 6600-9000lm 11000-15000lm 16500-22500lm 22000-30000lm 16500-22500lm
Efficacy 120-150lm/w 110-150lm/w 110-150lm/w 110-150lm/w 110-150lm/w 110-150lm/w
Color Rendering Index >70
Color Temperature 3000K, 4000K, 5000K, 5700K, 6500K
Lens Clear Glass or Clear Striped Spherical Glass
Beam Angle 15 Degree, 30-90 Degree, 110 Degree, T1-T5, 7H6V (140*120 Degree)
PF >0.9
THD ≤20%
Housing Color Yellow, Grey
Operating Temperature -40℃ TO 55℃ (-40℉ TO 131℉)
Weight 3.8KG 8.5KG 13.8KG 13.8KG 13.8KG 13.8KG
