FL14
Outdoor Lighting - LED Flood Light
Application Scenarios:
Road Lighting, Gymnasiums, Parks, Parking lots, Community leisure and entertainment squares, Various residential areas, Courtyards.
Product Asdvantages:
① 5-year warranty.
② Wet (IP65) rating.
③ Optional surge protector and photocell are available.
④ 0-10vdc dimming capability is standard.
⑤ CCT Selectable (3000K,4000K,5000K) and lumen selectable.
⑥ Clear tempered glass for 15w-140W, with 145°beam angle, PC module lens for 205-450W.

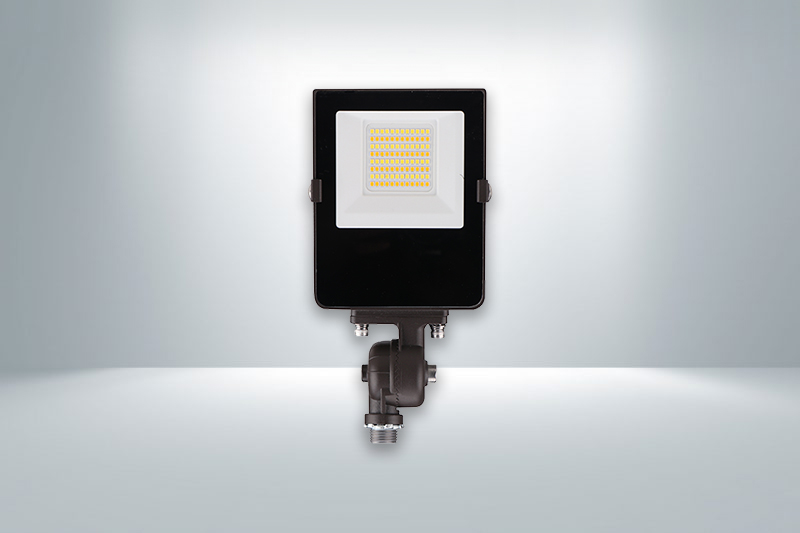

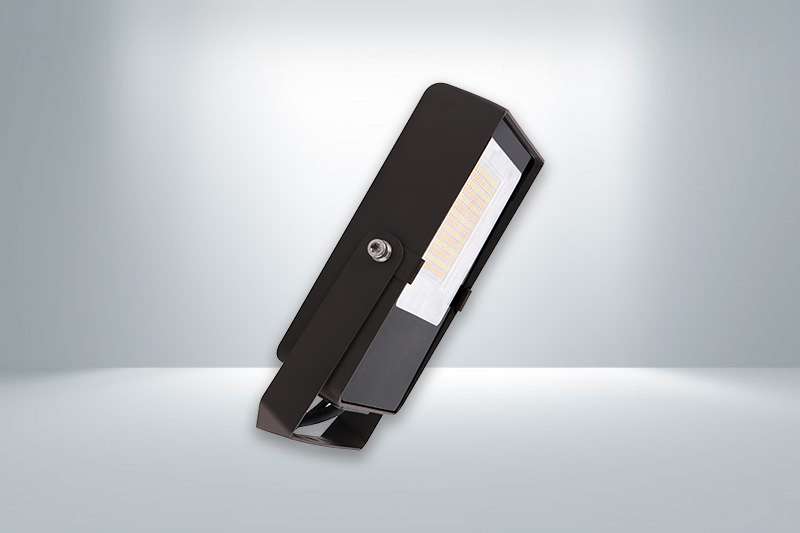

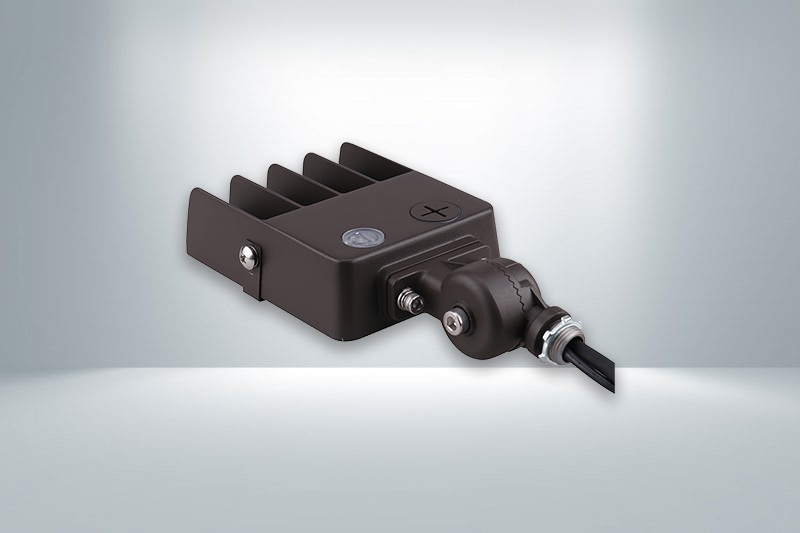

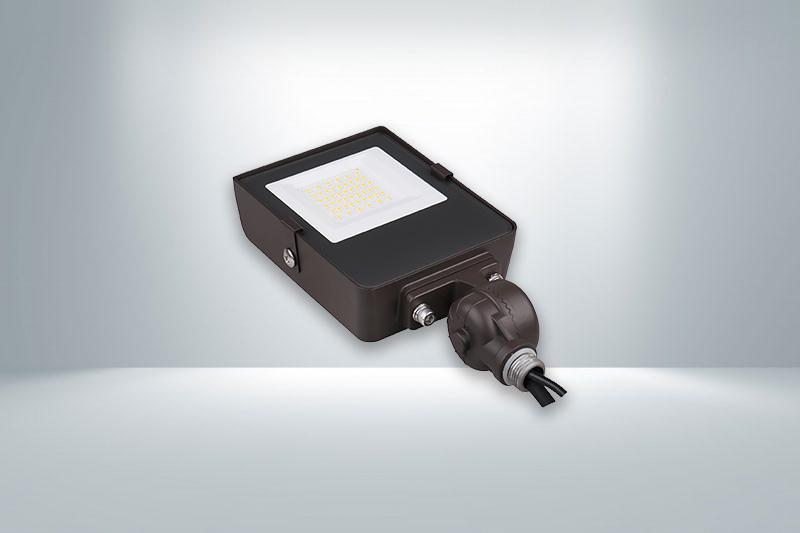

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*H(inch)		 Weight(kg)
15 120-277 2025-2250 Ra>80 AM:7.4x9.2x2.7
YM:8.0x7.2x2.6
FM:7.4x8.1x2.6		 1.2
25 120-277 3375-3625 Ra>80 1.2
35 120-277 4550-5075 Ra>80 1.2
60 120-277 7800-8700 Ra>80 AM:9.7x10.9x3.0
YM:9.7x9.1x3.0
FM:9.7x9.8x7.7		 1.96
80 120-277 10400-11600 Ra>80 1.96
105 120-277 13650-15225 Ra>80 AM:11.4x17.0x3.5
YM:12.1x11.0x3.5
FM:11.4x11.4x3.5		 4.38
150 120-277/277-480 18200-19600 Ra>80 4.46
