FWP05

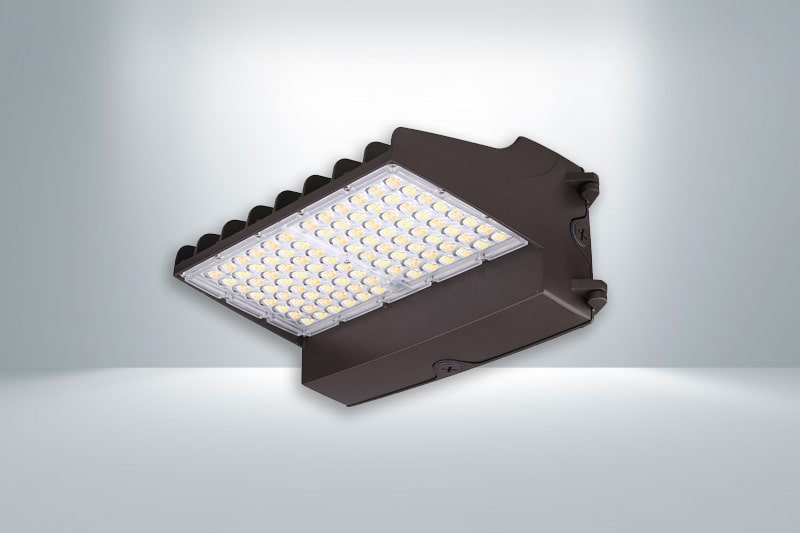

Outdoor Lighting - LED Wallpack Light
Application Scenarios:
Parking lots, community leisure and entertainment squares, courtyards, outdoor walls.
Product Asdvantages:
① 5-year warranty.
② Wet (IP65) rating.
③ CCT selectable (3000K,4000K,5000K) and lumen selectable.
④ 0-10vdc dimming is standard. Clear glass lens.
⑤ Optional surge protector, PIR sensor, microwave sensor, emergency back up.

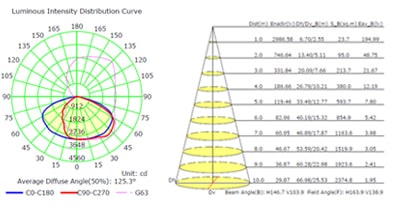

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*H(inch)		 Weight(kg)
40 120-277/120-347 5400-5800 Ra>80 9.8x8.0x6.0 2.2
60 120-277/120-347 8100-8400 Ra>80 2.3
80 120-277/120-347 10800-11600 Ra>80 12.8x9.5x6.3 3.2
100 120-277/120-347 13500-14500 Ra>80 3.2
120 120-277/120-347 16200-17400 Ra>80 3.6
