LA01

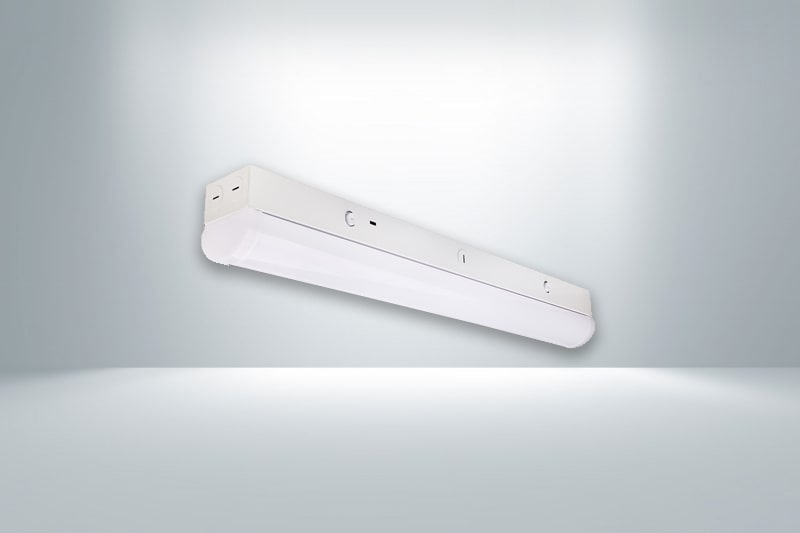

LED Linear Strip Light
Application Scenarios:
Offices, corridors and meeting rooms; Exhibition halls, supermarkets, etc
Product Asdvantages:
① 5-year warranty.
② cULus listed for damp locations.
③ CCT Selectable 3000K,4000K,5000K.
④ The fixture can be lengthened in field.
⑤ Polycarbonate lens with 130 degree.
⑥ Optional mountings: surface mount and hanging mount.

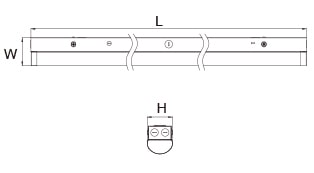

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*H(inch)
Weight(kg)
25 120-277 3200-3500 Ra>80 24.0x3.2x2.9 1.0
35 120-277 4500-4800 Ra>80 48.0x3.2x2.9 1.7
60 120-277 7500-8500 Ra>80 96.1x3.2x2.9 3.2
