MWP03(mini03)
Outdoor Lighting - LED Wallpack Light
Application Scenarios:
Parking lots, community leisure and entertainment squares, courtyards, outdoor walls.
Product Asdvantages:
① 5-year warranty.
② Wet (IP65) rating.
③ Five ½” NPT threaded openings.
④ Diffused polycarbonate lens.
⑤ Integral photocell is standard
⑥ Easy installation in new construction or retrofit applications.
⑦ CCT Selectable 3000K,4000K,5000K
⑧ 0-10vdc dimming drivers, which provide 10% continuous dimming are standard.

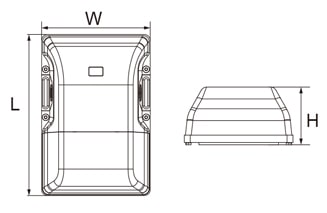

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*H(inch)
Weight(kg)
15 100-277 1750-1950 Ra>80 8.6x5.8x3.1 0.9
20 100-277 2400-2700 Ra>80 0.9
30 100-277 3500-3900 Ra>80 0.9
