PG04

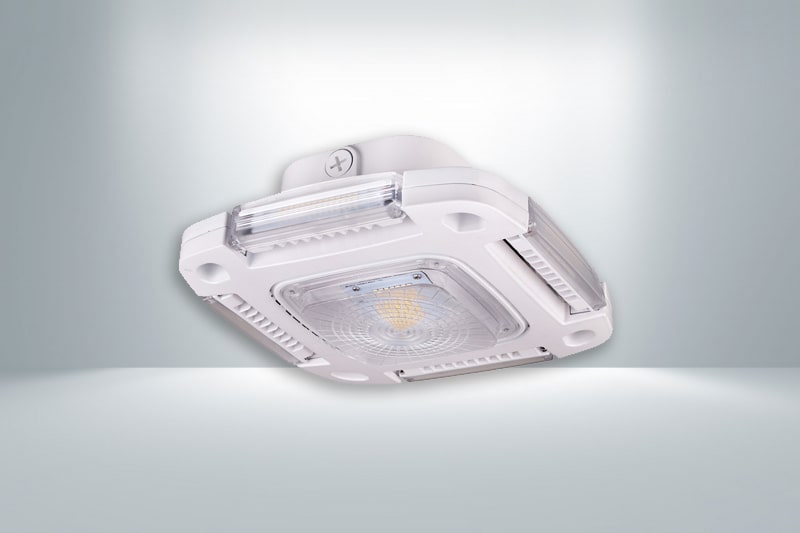

Outdoor Lighting - LED Parking Garage Light
Application Scenarios:
Gymnasiums, Parks, Parking lots, Community leisure and entertainment squares, Various residential areas.
Product Asdvantages:
① 5-year warranty.
② Wet (IP65) rating.
③ cULus listed for wet locations in ambient temperatures from -30°C to 50°C (-22°F to 122°F).
④ Mounting options include surface-mounting and pendant-mounting using 3/4''electrical conduit.
⑤ Optional, built in occupancy/daylight sensor is installed in the middle of luminaire and provides both on/off and dimming functions.

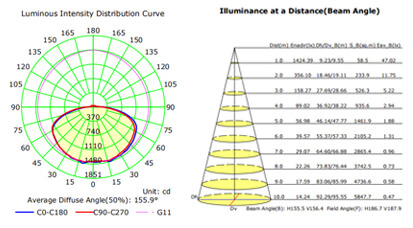

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*H(inch)
Weight(kg)
35 100-277 4300-4600 Ra>80 10.6x10.6x4.1 2.3
55 100-277 6800-7250 Ra>80 2.6
