PG05
Outdoor Lighting - LED Parking Garage Light
Application Scenarios:
Gymnasiums, Parks, Parking lots, Community leisure and entertainment squares, Various residential areas.
Product Asdvantages:
① 5-year warranty. Wet (IP65) rating.
② CCT Selectable 3000K,4000K,5000K
③ Polycarbonate lens with 150 degree
④ 0-10vdc dimming drivers are standard
⑤ cULus listed for wet locations in ambient temperatures from -30°C to 50°C (-22°F to 122°F).
⑥ Mounting options include surface-mounting and pendant-mounting using 3/4''electrical conduit.
⑦ Optional, built in occupancy/daylight sensor is installed in the middle of luminaire and provides both on/off and dimming functions.

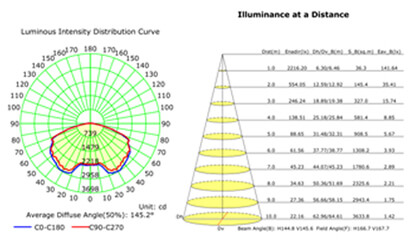

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
D*W(inch)
Weight(kg)
25 100-277 2875-3250 Ra>80 Ø10.0x3.2 2
40 100-277 4600-5200 Ra>80 2
55 100-277 4600-5200 Ra>80 2
75 100-277 8625-9750 Ra>80 3
100 100-277 11500-13000 Ra>80 3.1
