PG06
Outdoor Lighting - LED Parking Garage Light
Application Scenarios:
Gymnasiums, Parks, Parking lots, Community leisure and entertainment squares, Various residential areas.
Product Asdvantages:
① 5-year warranty. Wet (IP65) rating.
② CCT Selectable 3000K,4000K,5000K
③ Polycarbonate lens with 150 degree
④ 0-10vdc dimming drivers are standard
⑤ cULus listed for wet locations in ambient temperatures from -30°C to 50°C (-22°F to 122°F).
⑥ Mounting options include surface-mounting and pendant-mounting using 3/4''electrical conduit.

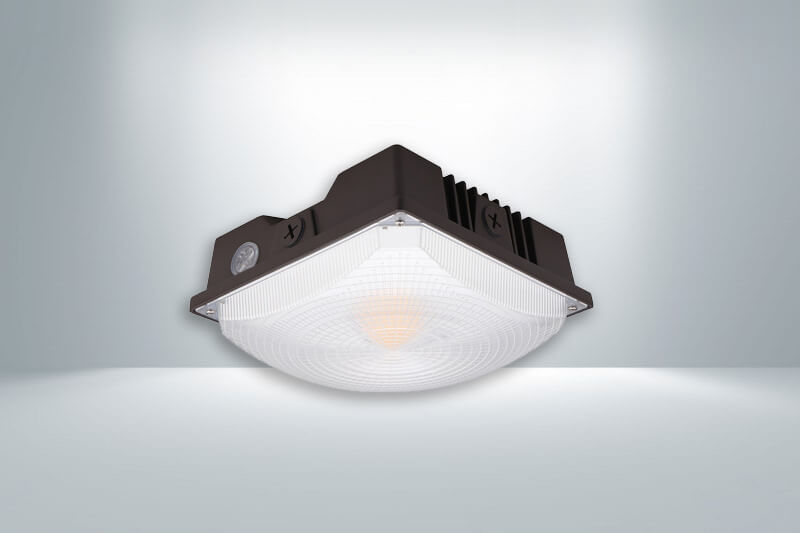

⑦ Optional, built in occupancy/daylight sensor is installed in the middle of luminaire and provides both on/off and dimming functions.

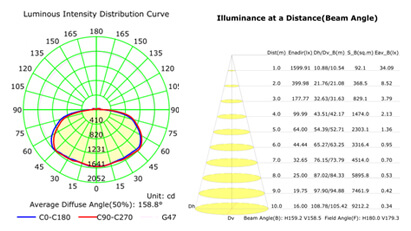

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) 3 CCT
Selectable
Dimension
L*W*H(inch)
Weight(kg)
20 120-277/120-347 2500-2700 3000K
4000K
5000K
8.03x8.03x3.66 2
35 120-277/120-347 4375-4725 2
40 120-277/120-347 5000-5400 2.1
60 120-277/120-347 7500-8100 10x10x4.17 2.8
75 120-277/120-347 7500-8100 2.8
