PHB09
Industrial Lighting - LED Linear Highbay Light
Application Scenarios:
Parking lot, Factory, Warehouse, Indoor stadium
Product Asdvantages:
① Easy to install and operate.
② Input voltage 120-277/347VAC.
③ The motion sensor is tool-less deign.
④ Light is soft and uniform, safe to eyes.
⑤ Instant start, NO flickering, NO humming.

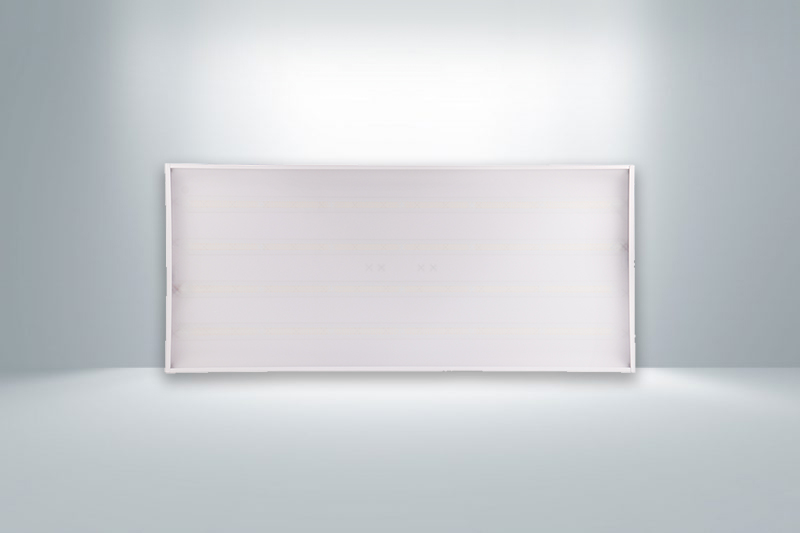

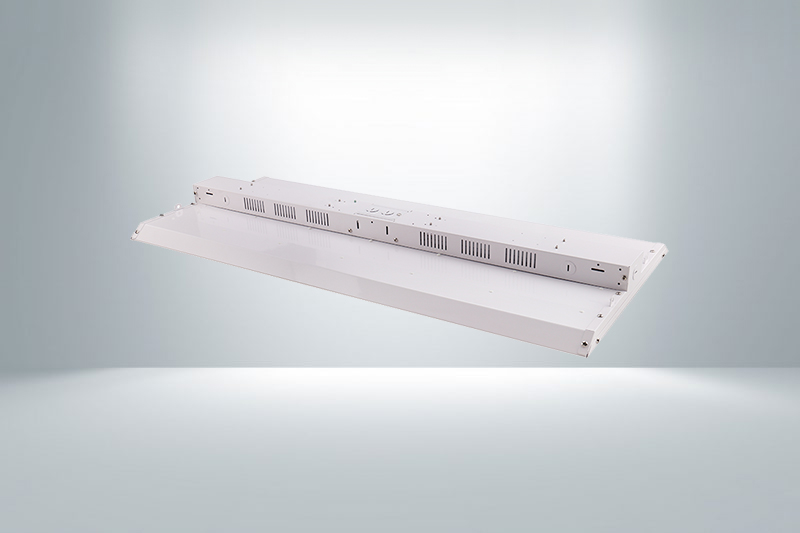

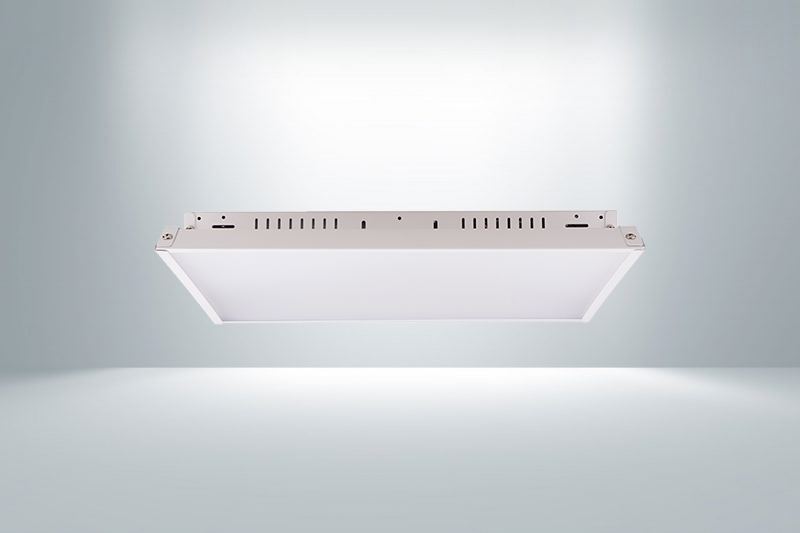

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*H(inch)		 Weight(kg)
90 120-277/120-480 12150-13050 Ra>80 24.8x11.81x1.89 3.2
24.8x12.8x2.09 3.8
110 120-277/120-347
277-480		 14850-15950 Ra>80 24.8x11.81x1.89 3.2
24.8x12.8x2.09 3.8
135 120-277/277-480 18225-19575 Ra>80 24.8x11.81x1.89 3.5
24.8x12.8x2.09 3.8
165 120-277/120-347
277-480		 22275-23925 Ra>80 24.8x11.81x1.89 3.5
24.8x12.8x2.09 3.85
220 120-277/120-347
120-277/277-480		 29700-31900 Ra>80 24.8x14.17x1.89 4.1
35.43x15.16x2.09 5.4
24.8x15.16x2.09 4.6
300 120-277/120-347
277-480		 40500-43500 Ra>80 35.43x15.16x2.09 6.0
320 120-277/277-480 43200-46400 Ra>80 35.43x15.16x2.09 7.3
500 120-277/277-480 67500-72500 Ra>80 47.24x12.8x3.36 11
