RWP01B

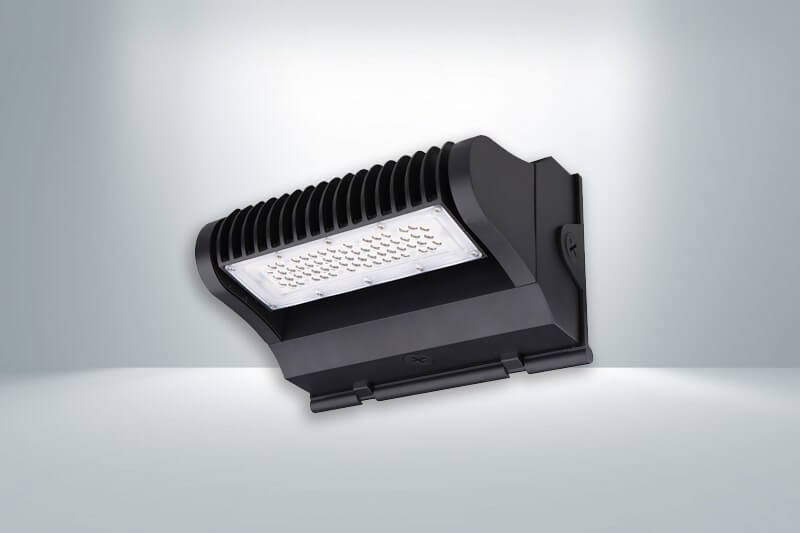

Outdoor Lighting - LED Wallpack Light
Application Scenarios:
Parking lots, community leisure and entertainment squares, courtyards, outdoor walls.
Product Asdvantages:
① 5-year warranty.
② Wet (IP65) rating.
③ Module ratatable within 270 degree
④ Easy installation in new construction or retrofit applications.
⑤ CCT Selectable 3000K,4000K,5000K
⑥ Two ½” NPT threaded openings.

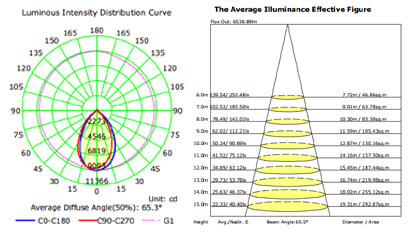

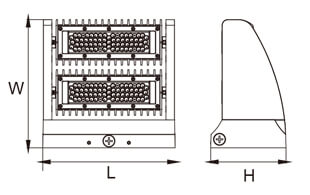

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*H(inch)		 Weight(kg)
25 120-277 3100-3600 Ra>70 9.4x6.5x5.9 1.62
40 120-277 4800-5800 Ra>70 1.74
60 120-277 7200-8700 Ra>70 1.74
80 120-277 9600-11600 Ra>70 9.4x10.0x5.9 2.68
120 120-277 14400-17400 Ra>70 3.14
