SB07

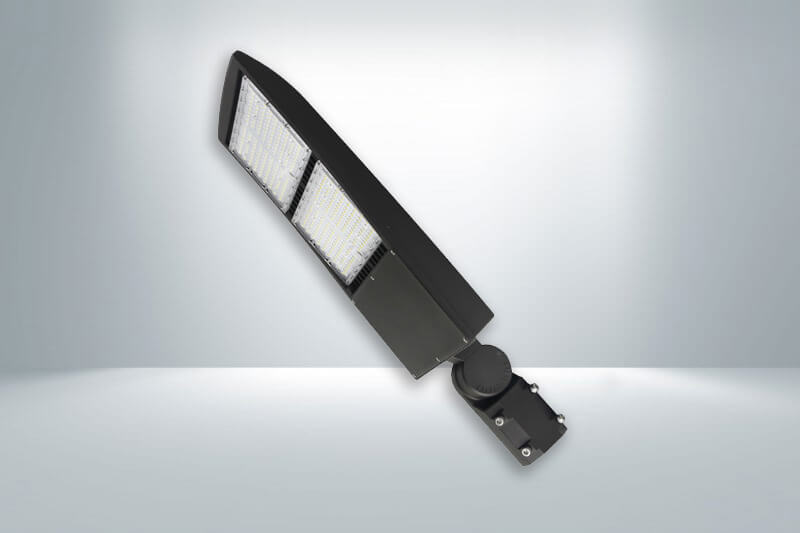

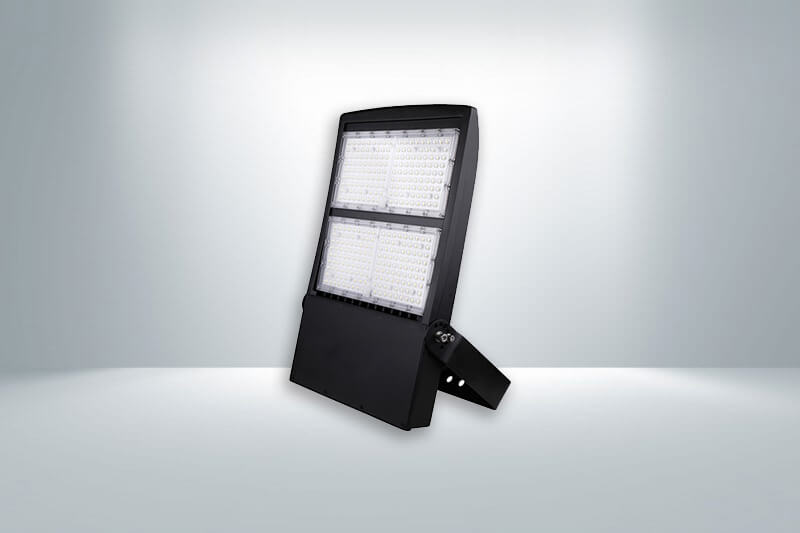

Outdoor Lighting - LED Street Light
Application Scenarios:
Various sports courts,factory floor,playground, stadium,community leisure entertainment plaza, road lamp,parking lot etc.
Product Asdvantages:
① 5-year warranty
② Certificate: UL cUL DLC. Wet (IP65) rating.
③ Rich housing color: Bronze,White,Black.
④ Rich mounting type: AM,DM,A&D,YM,FM,Easy to install and operate.
Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*D(inch)		 Weight(kg)
60 100-277 7500-8400 Ra>70 AM:20.8x13.1x3.6
DM:22.4x13.1x6.3
A&D:23.2x13.1x6.3
YM:18.3x13.1x3.5
FM:14.6x13.8x3.3		 4.9
80 100-277 10000-11200 Ra>70 5.0
100 100-277/200-480 12500-14000 Ra>70 5.1
120 100-277 15000-16800 Ra>70 5.1
150 100-277/200-480 18800-21000 Ra>70 5.2
185 100-277 23100-25900 Ra>70 AM:27.6x13.1x3.8
DM:29.1x13.1x6.3
A&D:29.9x13.1x6.3
YM:24.8x13.1x3.7
FM:21.3x13.9x3.3		 7.3
200 100-277/200-480 25000-28000 Ra>70 7.3
240 100-277/200-480 30000-33600 Ra>70 7.5
300 100-277/200-480 37500-42000 Ra>70 8.3
450 100-277/200-480 54000-63000 Ra>70 AM:36x13.4x3.7
DM:35.8x13.4x6.3
YM:34.2x13.4x3.7
A&D:37.2x13.4x3.7
A&D:28.2x13.8x3.7		 11.5
