SB11

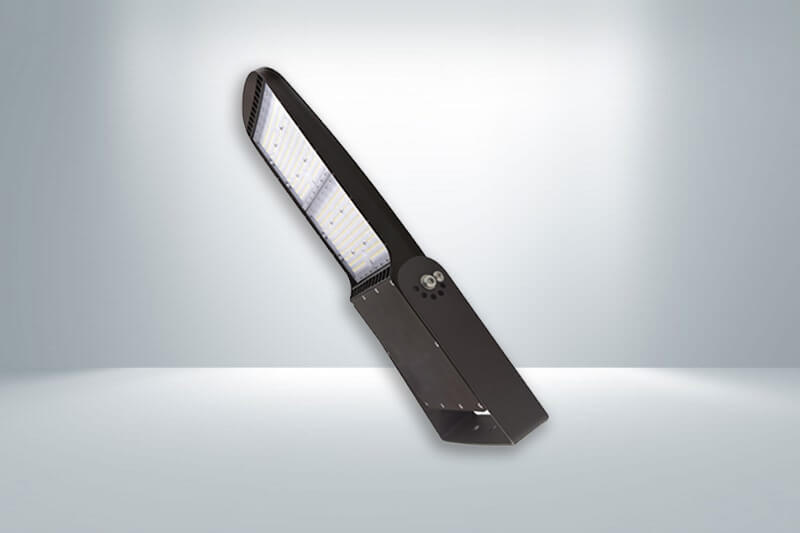

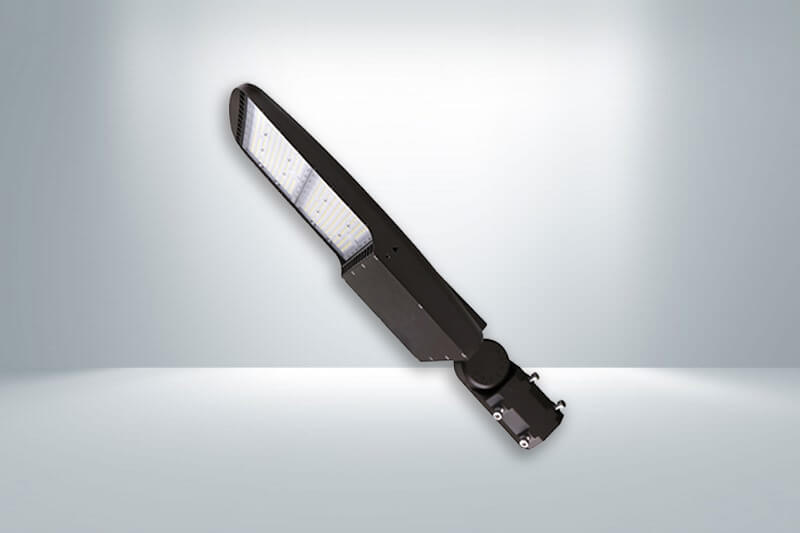

Outdoor Lighting - LED Street Light
Application Scenarios:
Various sports courts,factory floor,playground, stadium,community leisure entertainment plaza, road lamp,parking lot etc.
Product Asdvantages:
① Wet (IP65) rating
② Certificate: UL cUL DLC.
③ Rich housing color: Bronze,White,Black.
④ CCT Selectable 3000K,4000K,5000K,5700K
⑤ Rich mounting type: AM,DM,A&D,YM,FM,Easy to install and operate.
⑦ Optional 3pin/5pin/7pin Photocell, Short cap, DC Microwave sensor, DC PIR Sensor, 10KV/20KV Surge protector.
Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*D(inch)		 Weight(kg)
120 100-277 19800-20400 Ra>70 AM:22x13.11x3.45
DM:22.6x13.11x6.3
YM:19.4x13.11x2.76
A&D:24.17x13.11x6.3
FM:15.83x13.11x2.76		 5.1
150 100-277/277-480 24750-25500 Ra>70 5.1
185 100-277 30525-31450 Ra>70 5.1
240 100-277 39600-40800 Ra>70 AM:29.69x13.11x3.45
DM:30.83x13.11x6.3
YM:27.13x13.11x2.76
A&D:31.89x13.11x6.3
FM:23.54x13.11x2.76		 7.5
300 100-277/200-480 49500-51000 Ra>70 7.5
