SP06
Special Lighting - LED Sports Lighting
Application Scenarios:
Tennis courts, football fields, basketball courts, badminton courts and other types of courts
Product Asdvantages:
① The driver is placed in a separate driver box, which helps to lower the working temperature and greatly extend the lifetime of the led fixture;
② The driver box can be disassembled and installed on the bottom of the light pole as a whole, so that the drivers can be replaced without hiring a crane;
③ Fast and convenient wiring, and multiple led fixtures can be connected in series via AC wires;

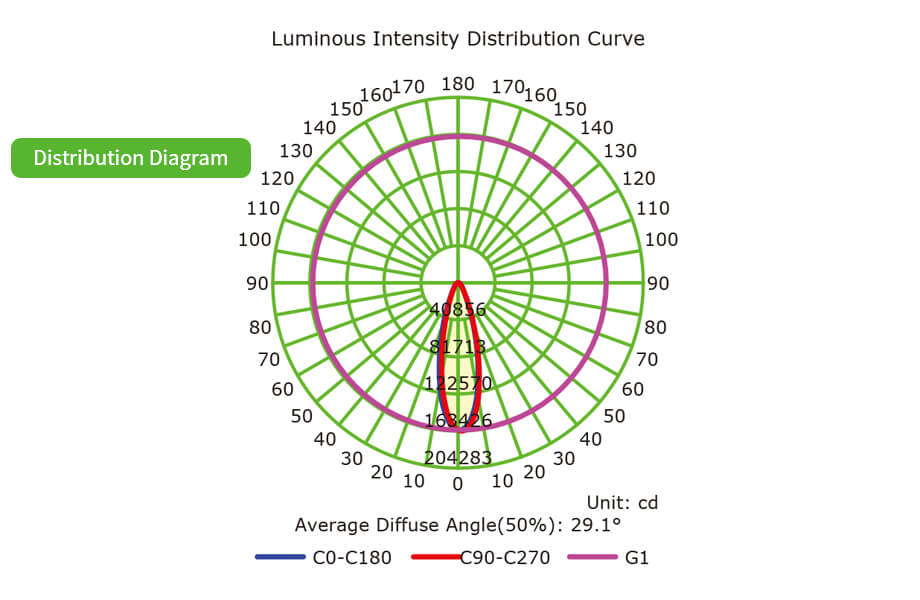

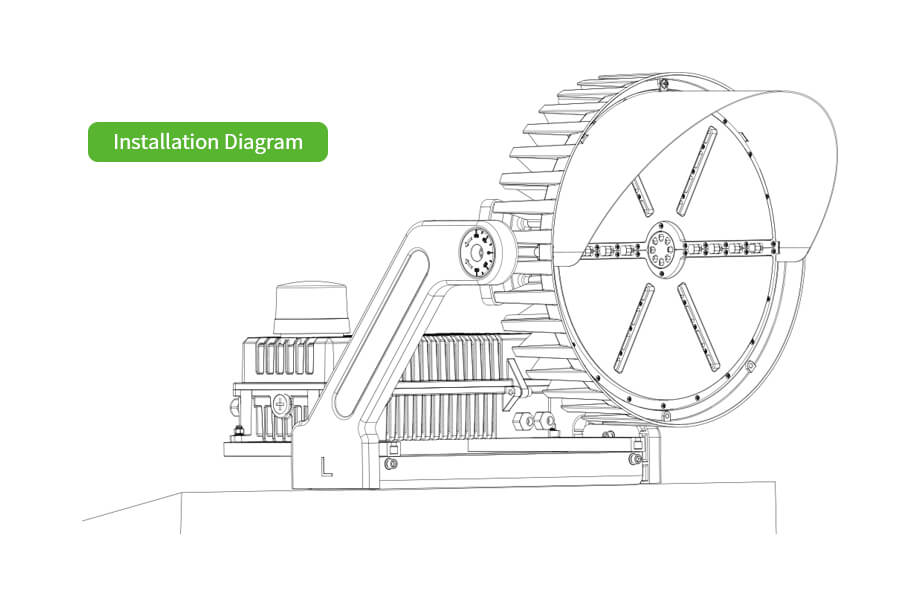

Product Diagram 01
Specifications 02
Power(W) Input Voltage Delivered Lumens
(lm)
Efficacy
(Im/W)
CRI Beam Angle Available CCT Operating Temp IP Rating
400 120-277/277-480 52,000-58,000 130-145 Ra>70 30°、40°、80°、120° 4000K/4500K/5000K/5700K -40°~45°C IP65
500 65,000-72,500 130-145 Ra>70 30°、40°、80°、120° -40°~45°C IP65
600 78,000-87,000 130-145 Ra>70 20°、30°、40°、60° -40°~45°C IP65
750 97,500-108,750 130-145 Ra>70 20°、30°、40°、60° -40°~45°C IP65
1000 130,000-145,000 130-145 Ra>70 20°、30°、40° -40°~45°C IP65
1200 156,000-174,000 130-145 Ra>70 20°、30°、40° -40°~45°C IP65
