SP07
Special Lighting - LED Sports Lighting
Application Scenarios:
Tennis courts, football fields, basketball courts, badminton courts and other types of courts
Application Scenarios:
① Optional function: adjust the brightness level of lamps (3 gears);
② The arrangement of the lenses facilitates the subsequent development of RGB solutions;
③ With an integral handle, it is convenient for customers to install and adjust the lighting direction of the lamp;
④ The maximum power of single mode is 600W, the light effect is more than 150LM/W (color temperature 4000K-5700K, 70 display), two modules are 1200W, and three modules are 1800W;

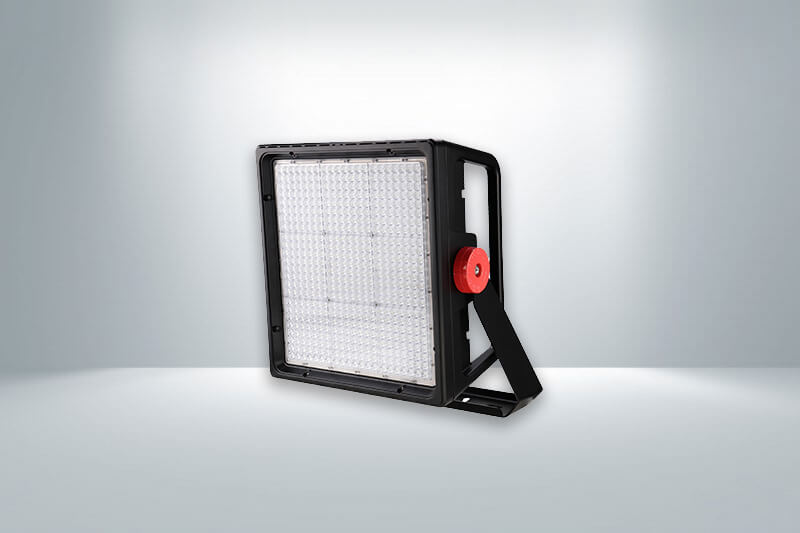

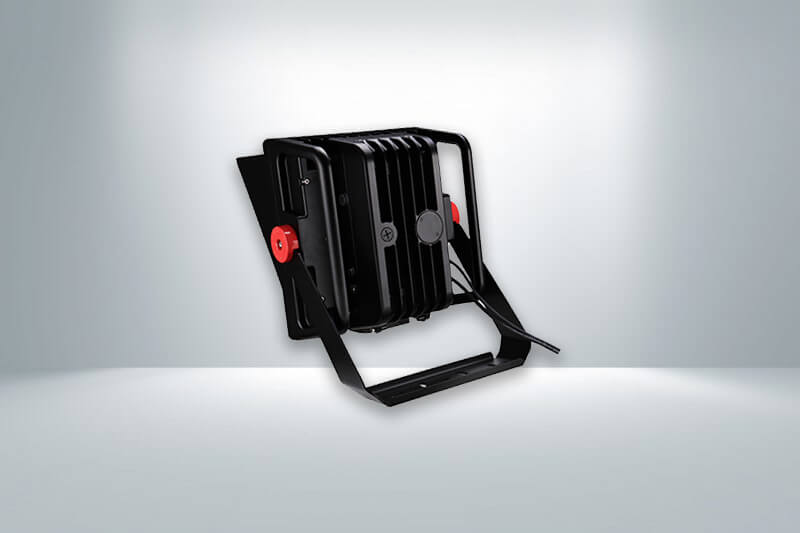

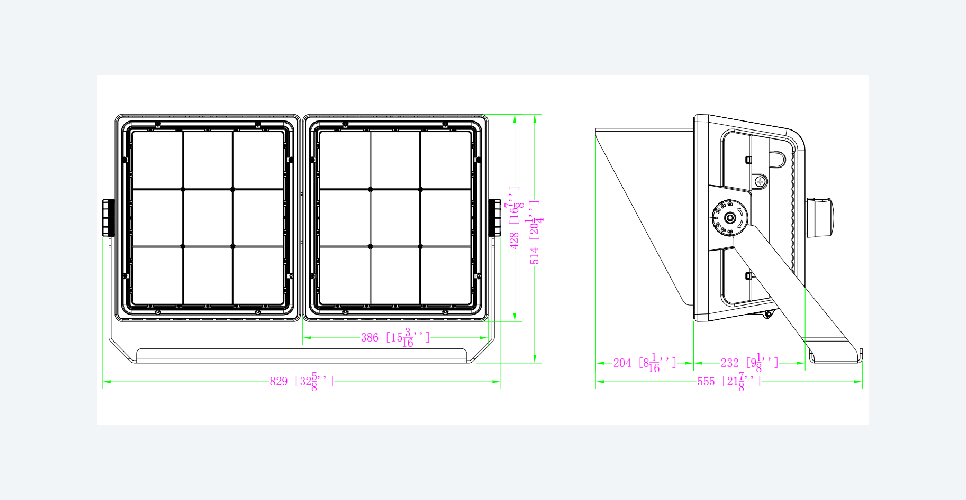

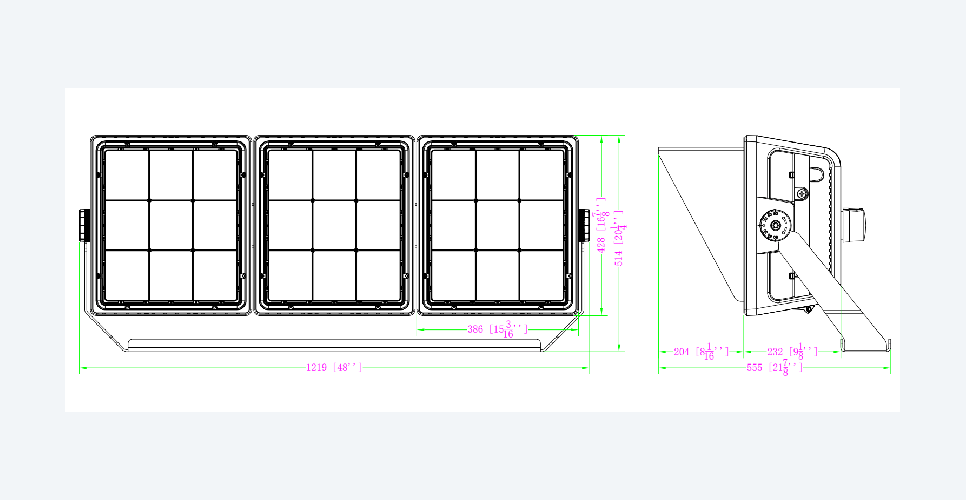

Product Diagram 01
Specifications 02
Power(W) Input Voltage Delivered Lumens
(lm)
Efficacy
(Im/W)
CRI Beam Angle Available CCT Operating Temp IP Rating Weight(kg)
500 100-277/200-480 67500-75000 130-150 Ra>70 15°/20°/30°/40°/60° 4000k/4500k/5000k/5700k -40°~45℃ IP65 22.8
700 100-277/200-480 94500-105000 130-150 Ra>70 15°/20°/30°/40°/60° 4000k/4500k/5000k/5700k -40°~45℃ IP65 23.0
1000 100-277/200-480 130000-150000 130-150 Ra>70 15°/20°/30°/40°/60° 4000k/4500k/5000k/5700k -40°~45℃ IP65 32.6
1400 100-277/200-480 1890000-210000 130-150 Ra>70 15°/20°/30°/40°/60° 4000k/4500k/5000k/5700k -40°~45℃ IP65 33.0
