SWP05
Outdoor Lighting - LED Wallpack Light
Application Scenarios:
Parking lots, community leisure and entertainment squares, courtyards, outdoor walls.
Product Asdvantages:
① 5-year warranty.
② Wet (IP65) rating.
③ Five ½” NPT threaded openings.
④ 0-10vdc dimming is standard. Clear glass lens.
⑤ CCT selectable (3000K,4000K,5000K) and lumen selectable.
⑥ Optional surge protector, PIR sensor, microwave sensor, emergency back up.

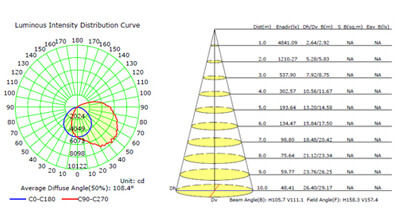

Product Diagram 01
Specifications 02
Power(W) Input (VAC) Lumens(lm) CRI Dimension
L*W*H(inch)		 Weight(kg)
S 29 120-277 3770-4205 Ra>80 10.7x8.3x7.7 3.0
40 5200-5800 Ra>80 3.0
50 6500-7250 Ra>80 3.0
60 7800-8700 Ra>80 3.0
M 29 120-277
120-347
277-480		 3250-3625 Ra>80 14.4x9.3x7.4 3.4
29 3700-4200 Ra>80 3.6
40 5200-5800 Ra>80 3.6
50 6500-7300 Ra>80 3.6
60 7800-8700 Ra>80 3.6
70 9100-10150 Ra>80 3.6
80 10400-11600 Ra>80 3.7
100 13000-14500 Ra>80 3.7
120 15600-17400 Ra>80 3.7
L 100 120-277
120-347
277-480		 13000-14500 Ra>80 17.9x9.4x9.0 4.3
120 15600-17400 Ra>80 4.3
150 19500-21750 Ra>80 4.5
